风选+振动筛+重力清洗机 Air shaker gravity cleaner

风选+振动筛+重力清洗机 Air shaker gravity cleaner

关键词:

咨询电话:

熊经理 18168863192

周经理 13665101927

产品介绍

风选+振动筛+重力清洗机 Air shaker gravity cleaner

首先风选去除轻杂质、然后振动筛选去除大杂、小杂,最后重力清选去除重杂质。

特点:

1.适用于芝麻籽、豆类、小麦、玉米、谷物等。

2.一次性清除灰尘、糠秕、麦秸、伤籽、芽籽、霉变粒等轻杂质。

3.振动筛选、分级功能。

4.适用于杂质较多的粮食或种子。

优势:

1.净度≥ 98%

2.产量:30t/h

3、筛分率高:双筛箱结构

4.双风筛、双旋风除尘器

5.环保、密闭结构、双螺杆旋风分离器

6.能耗低

工作原理:

原料经空气清洁过滤除尘、振动筛除大小杂质,进入重力清选,将受伤的种子、发芽种子、霉变的谷粒等重杂质除去,分离精度高。


Model

型号

Screen box vibration frequency

(Times /   minute)

筛箱振动频率

Surface size of gravity screen (mm)

   重力筛表面尺寸

Gravity vibration frequency

(Times/   minute)

重力振动频率

Gravity   vibration amplitude(mm)

重力振幅

净度

(%)

Capacity

(t/h)

产量

Power   (kw)

功率

Weight (t)

自重量

Overall   Size

L×W×H (mm)

外形尺寸

5XFZ-S

930

1700×2000

375

20

98

≥30

18.55

4400

5185×2732×3520

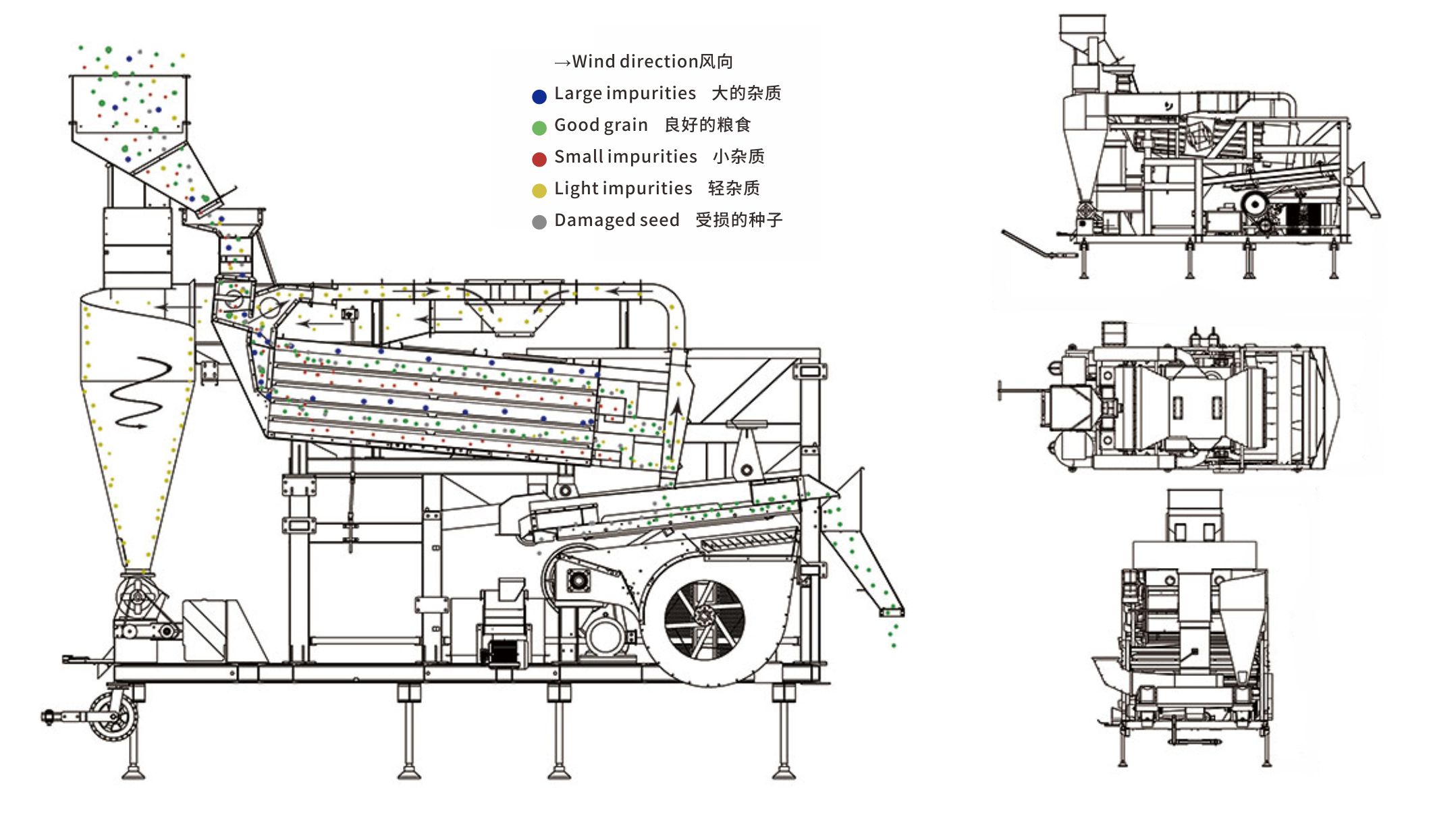

First, the air cleaner removes light impurities, then the vibration screen removes large and small impurities, and finally the gravity cleaning removes heavy impurities.


Function

1. Suitable for sesame seeds, beans, wheat, corn, grain, etc.

2. Remove the light impurities such as dust, chaff, wheat straw, damaged seeds, sprouted seeds and moldy grains at one time.

3. Vibration screening and grading function.

4. Suitable for grains or seeds with more impurities.


Advantage

1. Purity ≥ 98%

2. Output: 30t/h

3. High screening rate: double screen box structure

4. Double air screen, double cyclone dust remover

5. Environmental protection, closed structure, twin-screw cyclone separator

6. low energy consumption


Working principle

The raw materials are cleaned, filtered and dedusted by air, and the impurities of large and small are removed by vibrating screen, and then enter into gravity cleaning, so as to remove the heavy impurities such as the injured seeds, germinated seeds and moldy grains, with high separation accuracy.
