成套设备智能电气控制总系统 Intelligent electrical control system of complete equipment

型 号： GGD

额定工作电压： 380V

额定工作频率： 50HZ

额定绝缘电压： 690V

额定防护等级： IP54

过电压等级： III

耐压水平： 2.5KV 50HZ 1min

温 升： 符合IEC947-1、GB7251-2004规定

冷却方式： 风冷

额定功率： 300kw/h

抗震等级： 7级

使用寿命： 20年

控制方式： 全自动智能化

GGD 电器控制柜，采用 PLC 编程器+10 英寸液晶屏显示，全中文操作界面，故障自动报警会指出故障点，并且给出多个排除方案。包含电器控制总柜，配有电路保护器。有低电压保护装置、过载保护装置、缺相保护装置、电流表、电压表和相位指示开关。

空气开关、漏电保护器、继电器、热过载保护器、电流电压表、指示灯、按钮等电器元器件采用浙江德力西集团。

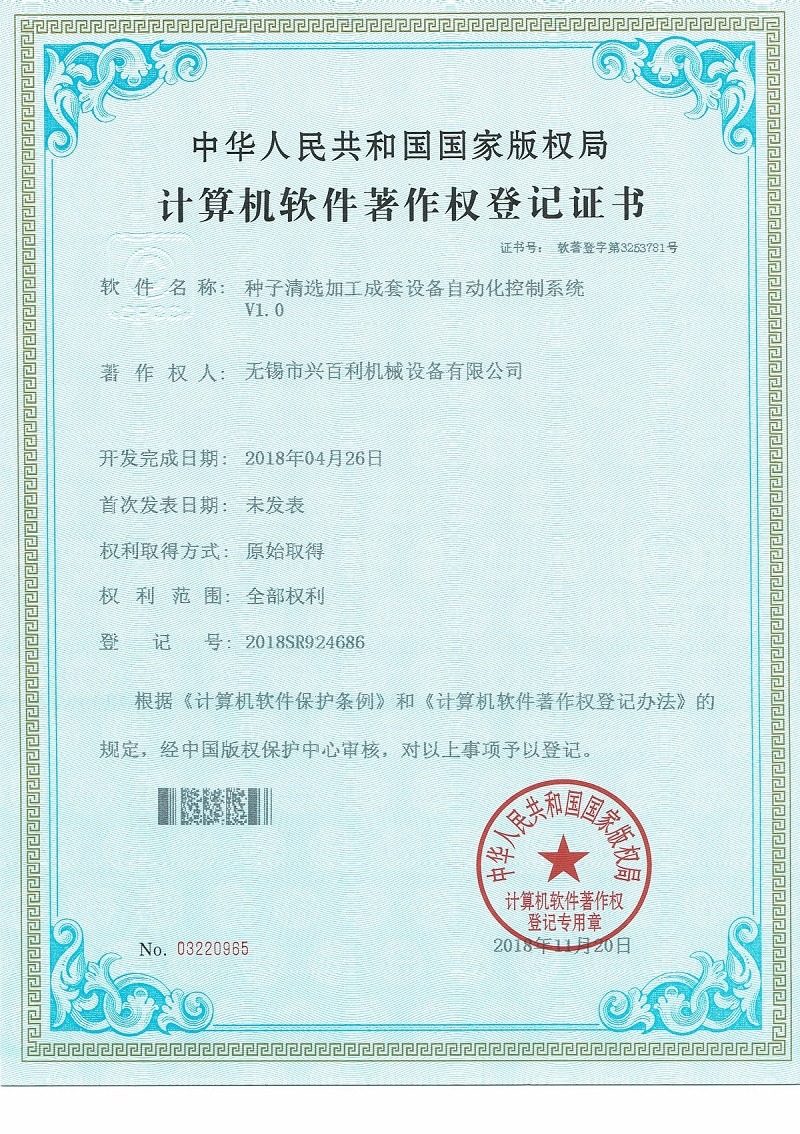

拥有1项计算机软件著作权登记证书，证书号：软著登字第3253781号，登记号2018SR92486

采用防鼠铁铠甲国标电缆线。

Model: GGD

Rated working voltage: 380V

Rated working frequency: 50Hz

Rated insulation voltage: 690V

Rated protection grade: IP54

Overvoltage level: III

Withstand voltage level: 2.5KV 50Hz 1min

Temperature rise: in accordance with iec947-1 and gb7251-2004

Cooling mode: air cooling

Rated power: 300kW / h

Seismic grade: 7

Service life: 20 years

Control mode: fully automatic and intelligent

GGD electrical control cabinet adopts PLC programmer + 10 inch LCD display, full Chinese operation interface, automatic fault alarm will point out the fault point, and provide several solutions. Including electrical control cabinet, equipped with circuit protector. There are low voltage protection device, overload protection device, phase loss protection device, ammeter, voltmeter and phase indicator switch.

Zhejiang Delixi Group is used for air switch, leakage protector, relay, thermal overload protector, ammeter, indicator light, button and other electrical components.

One computer software copyright registration certificate, Certificate No.: ruozhdz No. 3253781, Registration No. 2018sr92486

Adopt the national standard cable of rat proof iron armor.
