1-5kg全自动包装机 1-5kg automatic packaging machine

1-5kg全自动包装机 1-5kg automatic packaging machine

关键词:

咨询电话:

熊经理 18168863192

周经理 13665101927

产品介绍

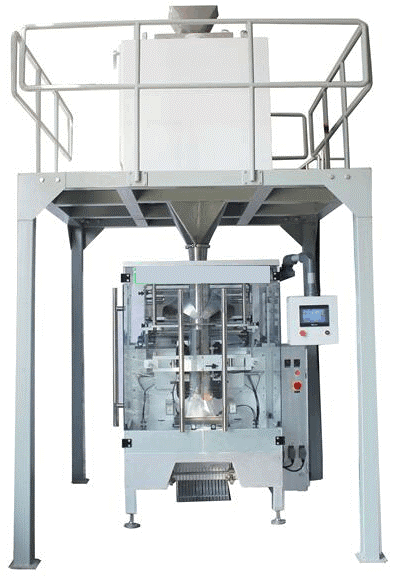

立式全自动多头组合包装机 Vertical automatic multi head combination packaging machine


1、该机组集计量、制袋、充填、封口、打印、冲孔、记数于一体。

2、进口PLC全电脑控制系统,多国语言触摸屏操作系统,清楚显示工作状态及操作指令。

3、采用高精度伺服真空运膜系统,运膜平稳,皮带损耗极低,配合光电自动定位跟踪系统,定位精度高、

4、横封封口采用伺服封合,封口控制稳定、平整、美观、耗气量低。

5、智能型数字式温控系统,温差控制稳定,配合齿形封口器,确保封口牢固。

6、含自动故障报警显示功能,如温度偏低、无包装膜、无色带、无物料、伺服故障、无色标信号、玻璃防护门未关闭等情况时,即自动报警或停机。


适用范围:

适合要求称重计量精度高及易碎的散状物体的包装,如:种子、炒货、杂粮、膨化食品、锅巴、果冻、糖果、开心果、苹果片、水饺、汤圆、朱古力、宠物食品、调味品、药材、小五金件等各类块状、条状、粉状物料的自动包装。


称量机构选配:

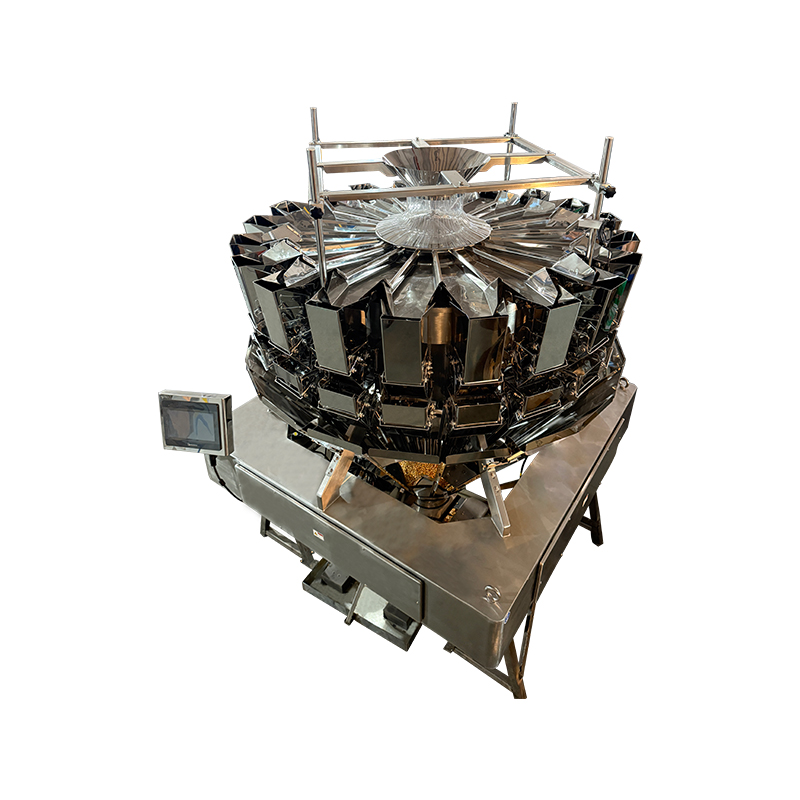

称量部分可选配以下电子秤:二头、四头、六头线性秤;十头电子组合秤、十四头电子组合秤。


技术参数

型号

LCS-680

包装速度



35-45bags/min

计量范围

0.5-5kg

称量精度

±0.2%g

制袋尺寸

L50mm-460mm*W80mm-350mm

最大膜宽

680mm

卷材纸芯内径

Φ75 mm

包材最大外径

Φ400 mm

包装膜材质

POPP/CPP,PLPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/WL/PE,NY/PE,PET/PET

圈膜厚度

0.04-0.10mm

制袋形式

立式袋、枕式袋、打孔装置、连包装置

耗气量

0.4m3/min  0.6Pa

功率

5.0kW  380V  50/60HZ

外形尺寸

2500mm*2500 mm *4200 mm

设备重量

1500kg


1. The machine set includes measuring, bag making, filling, sealing, printing, punching and counting.

2. Imported PLC full computer control system, multi language touch screen operating system, clearly show the working status and operation instructions.

3. It adopts high-precision servo vacuum film transport system, which is stable in film transport and extremely low in belt loss. With the photoelectric automatic positioning and tracking system, it has high positioning accuracy

4. The horizontal sealing adopts servo sealing, and the sealing control is stable, flat, beautiful and low gas consumption.

5. Intelligent digital temperature control system, stable temperature difference control, with tooth shaped sealer, to ensure that the seal is firm.

6. Including automatic fault alarm display function, such as low temperature, no packaging film, no color band, no material, servo fault, no color code signal, glass protective door is not closed, etc., which means automatic alarm or shutdown.


Scope of application

It is suitable for the packaging of bulk objects with high weighing accuracy and fragile, such as seeds, fried goods, miscellaneous grains, expanded food, Guoba, jelly, candy, pistachio, apple slices, dumplings, Tangyuan, chocolate, pet food, condiment, medicinal materials, hardware and other kinds of block, strip and powder materials.


Selection of weighing mechanism

The weighing part can be equipped with the following electronic scales: two, four, six linear scales; ten electronic combined scales, fourteen electronic combined scales.


Technical data

Model

LCS-680

Packing   speed



35-45bags/min

Measurement   range

0.5-5kg

Quantify precision

±0.2%g

Bag   Size

L50mm-460mm*W80mm-350mm

Maximum   membrane width

680mm

Inner diameter of coil paper core

Φ75 mm

Maximum outer diameter of packing material

Φ400 mm

Packaging   film material

POPP/CPP,PLPP/VMCPP,BOPP/PE,PET/VMPET/PE,PET/WL/PE,NY/PE,PET/PET

Film   thickness

0.04-0.10mm

Sealing   method

Vertical bag, pillow bag, drilling device and continuous bag device

Gas   consumption

0.4m3/min  0.6Pa

power

5.0kW  380V  50/60HZ

Boundary   dimension

2500mm*2500 mm *4200 mm

Equipment   weight

1500kg
