白俄罗斯风筛清选机 UNIVERSAL GRAIN SEPARATOR,,MEGA’’

白俄罗斯风筛清选机 UNIVERSAL GRAIN SEPARATOR,,MEGA’’

关键词:

咨询电话:

熊经理 18168863192

周经理 13665101927

产品介绍


普遍的粮食分离器,,大型''

应用

通用谷物分选机主要用于对谷类、豆科、谷类作物、油菜等谷物和种子的初、初、二次清洗。

本机用于生产线上的空气筛分离器,可提供粮食或种子。


设计特点

-分离器将颗粒物质流分离成3 - 7个馏分;

-模块化吸尘系统,可提供各种修改:

p -初步,l -工业,s -种子清洗(图1);

-筛面z形排列,可对物料进行准确分选(图2);

-允许通过重新排列接收托盘来改变筛板的功能用途。(图3);

-驱动机构不需要调整(采用自动张力装置和齿轮马达)(图4-5)。

样式

大型

12-3/2

15-3/2

12-5/2

15-5/2

生产能力,t/h

-初步净化

40

50

60

80

-首次的清选

20

25

30

440

-第二次清选

4

5

8

10

电机装机功率,千瓦(无风管、风机、旋风)

4.25              6.05

重量,kg

2300

2500

3000

3300

整体尺寸,mm

-长

2750

-宽

1850

2150

1850

2150

-高

2500

3450


UNIVERSAL GRAIN SEPARATOR,,MEGA’’

APPLICATION

The universal grain separator is designed for preliminary, primary and secondary cleaning of grain and seeds of cereals, leguminous, cereal crops and canola.

The machine is used as the air-sieve separator in production lines and providers food grains or seeds.


DESIGN FEATURES

-       separator provides separation of the grain material flow into 3 to 7 fractions;

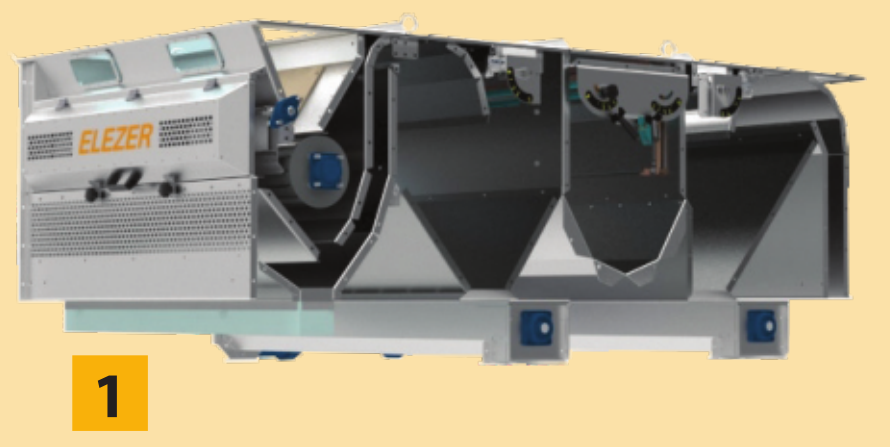

-       modular aspiration system can be supplied in various modifications:

p – preliminary, l – industrial, s – seed cleaning (Drawing 1);

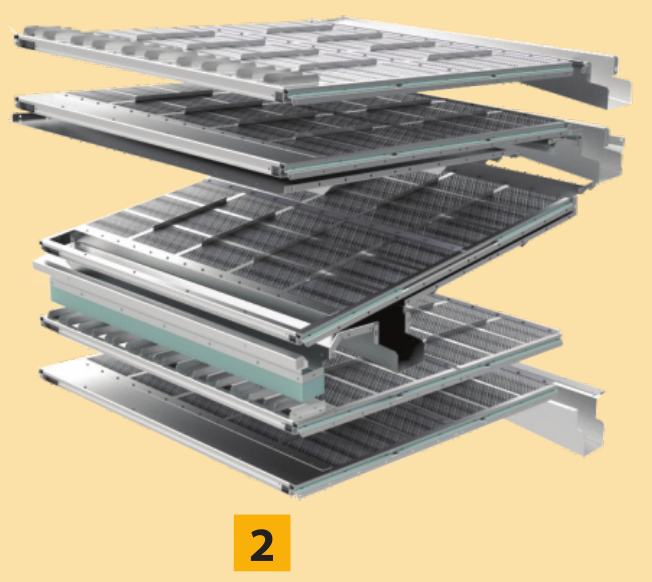

-       z-arrangement of sieve surfaces provides accurate sorting of the material (Drawing 2);

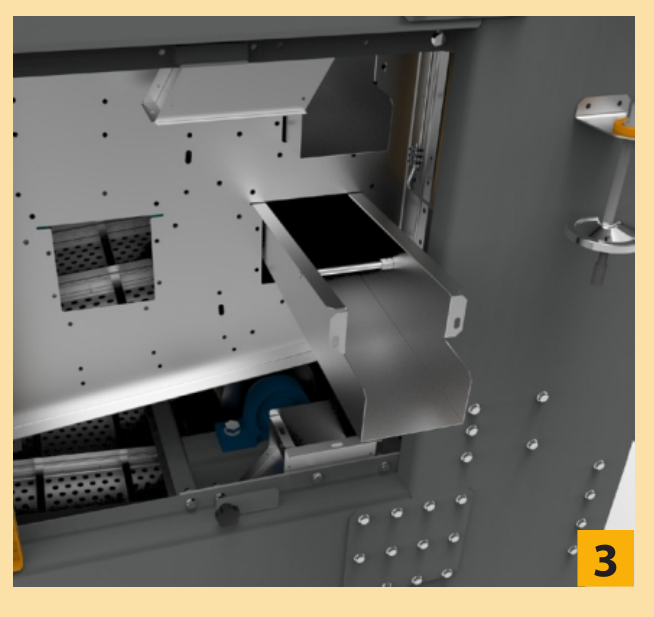

-       it is allowed to change the functional purpose of the sieve planes by rearranging the receiving trays. (Drawing 3);

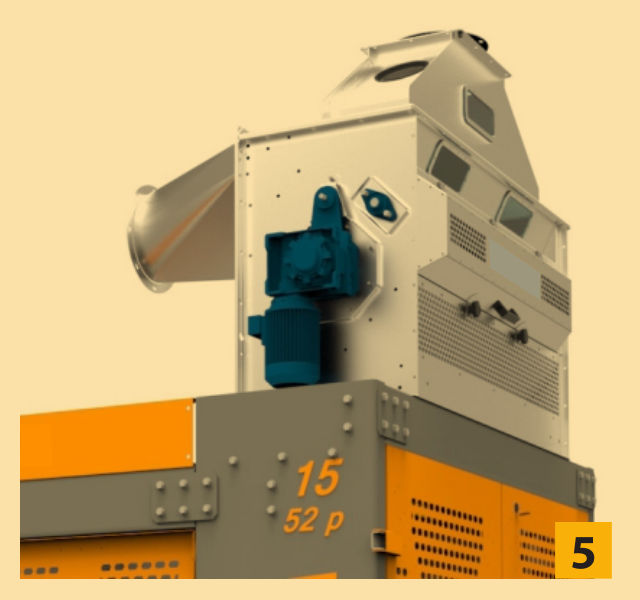

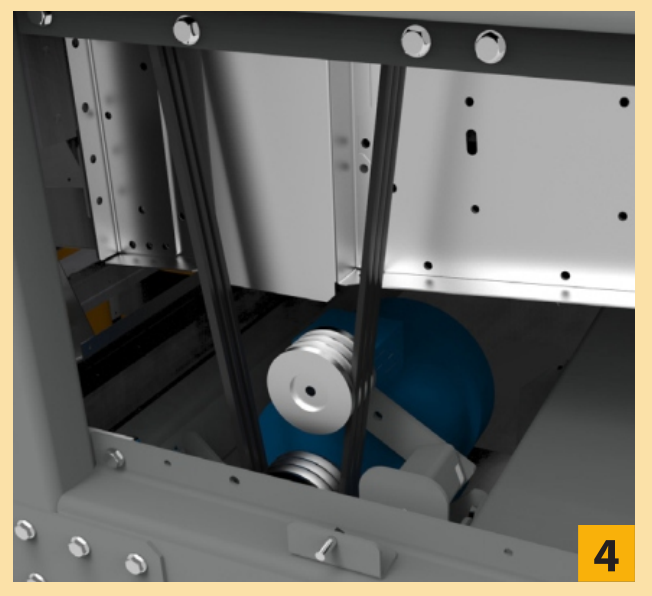

-       drive mechanisms do not require adjustment (automatic tensioners and gear motors are applied) (Drawings 4-5).

Model

MEGA

12-3/2

15-3/2

12-5/2

15-5/2

Productivity, tons/hour

-preliminary cleaning

40

50

60

80

-primary cleaning

20

25

30

440

-secondary cleaning

4

5

8

10

Installed power of electric motors, kW(without   air pipes, fan and cyclone)

4.25              6.05

Weight, kg

2300

2500

3000

3300

Overall dimensions, (mm)

-length

2750

-width

1850

2150

1850

2150

-height

2500

3450
