风筛式精选机 Air screen cleaner

利用空气室风道系统的负压吸力和网孔筛选的原理,去除粮食或种子中的枝、梗、轻杂、茎叶、瘪谷、瘦小籽粒、破碎粒、土块、石头等杂质,主要用于小麦、水稻、玉米、可可、豆类的精选加工。

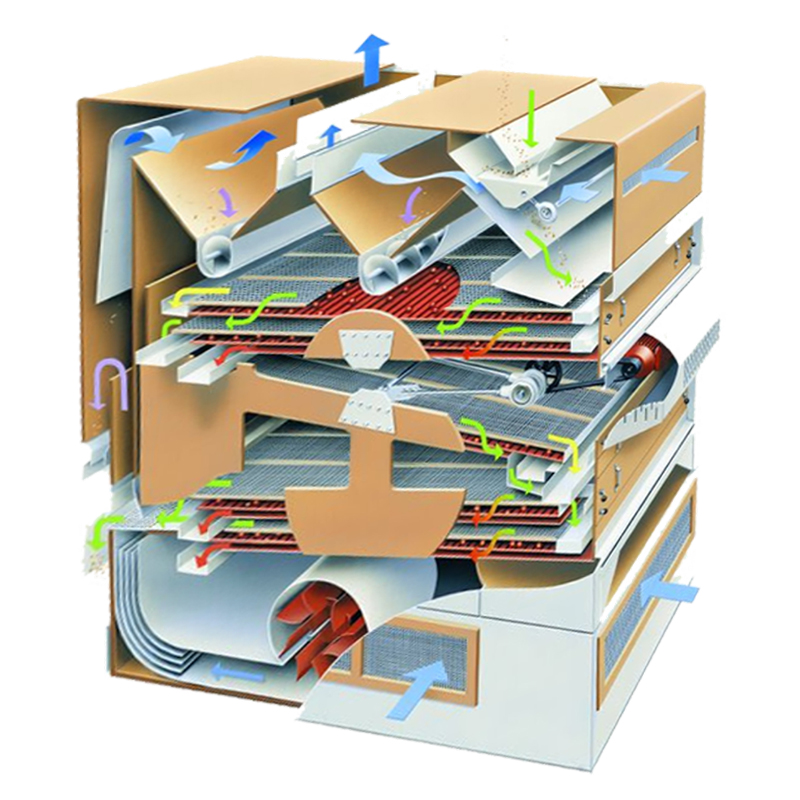

筛箱及空气室为榉木胶合板结构,空气室分别由前后二套吸风道及前后二套沉降室组成,筛箱由二至六层筛网组成,筛网清理采用橡胶球撞击式,自清筛能力强;通过选配不同规格的筛孔,可进行各种粮食及种子的精选加工。

智能自动化功能:

1、所有动力全部采用伺服电机、变频电机,大量运用伺服、变频、PLC、上位机等智能自动化技术,再配上各种传感器把检测数据上传给触摸屏,使设备的转速、扭矩、温度、振动频率、空气流量、空气压力、风门角度等参数直观的显示在触摸屏,运行情况一目了然。

2、当设备调整到最佳状态时,相关数据一键保存,下次加工相同种子只需一键恢复,对操作人员的专业技术要求低,无需凭个人经验使用设备。

3、把手动操作步骤换成伺服电机来执行,操作人员不用跑前跑后,只需在触摸屏上输入相关参数来命令伺服电机,把复杂的事情变为简单。

4、排杂出料口、成品出料口安装高清摄像头,方便管理人员在显示器上查看调整设备后的相关情况。

5、智能自动化设备平均节能30%,降低使用成本。

6、所有的运行状态触摸屏全中文显示,具有故障提示、自诊断功能。

7、软件具有远程升级、查看、诊断功能,方便厂家远程服务,方便用户管理人员。

注:以上智能配置可选,我们按需报价。

Model

型号

Overall Size

外形尺寸

(mm)

Screen surface size

筛网面积(m²)

Selection rate

获选率

(%)

Clarity

净度

(%)

Amplitude of the sieve

筛体振幅(mm)

Rate of the screen box

筛箱频率(r/min)

Air volume

风量

(m3/h)

Number of the sieves

筛网层数

Production

产量

(t/h)

Power

功率

(kW)

5X-5.03000*1650*3250≥9.0≥99 ≥9913280-320≥85003层5.05.0
5X-10.04000*1750*3900≥15.0≥99 ≥9913280-320≥140005层10.07.0
5X-15.04200*1850*4250 ≥18.0≥99 ≥9913280-320≥180006层15.09.0


Based on the principle of negative pressure suction of air chamber air duct system and mesh screening, impurities such as branch, stem, light impurity, stem and leaf, shriveled grain, thin and small grain, broken grain, soil block and stone are removed from grain or seed, which are mainly used for the selection and processing of wheat, rice, corn, cocoa and beans.



The screen box and air chamber are made of beech plywood structure. The air chamber is composed of two sets of air suction ducts and two sets of settling chambers. The screen box is composed of two to six layers of screen mesh. The screen mesh is cleaned by rubber ball impact type, with strong self-cleaning capacity. By selecting different sizes of screen holes, various grains and seeds can be selected and processed.



Intelligent automation function:

1. Servo motor and variable-frequency motor are used for all the power. Servo, variable-frequency, PLC, upper computer and other intelligent automation technologies are widely used. In addition, various sensors are equipped to upload the detection data to the touch screen, so that the parameters such as rotating speed, torque, temperature, vibration frequency, air flow, air pressure, air door angle and so on of the equipment can be displayed on the touch screen intuitively. The operation situation is a complete picture However.

2. When the equipment is adjusted to the best state, the relevant data can be saved with one key. The next processing of the same seed only needs one key to restore. The professional and technical requirements for the operators are low, and the equipment does not need to be used by personal experience.

3. The manual operation steps are replaced by servo motor to execute. The operator does not need to run before and after, but only needs to input relevant parameters on the touch screen to command the servo motor, which makes the complex things simple.

4. HD cameras are installed at the discharge outlet and finished product outlet to facilitate the management personnel to check the relevant conditions after adjusting the equipment on the display.

5. The average energy saving of intelligent automation equipment is 30%, and the use cost is reduced.

6. All operation status touch screens are displayed in both Chinese and English, with fault prompt and self diagnosis functions.

7. The software has the function of remote upgrade, check and diagnosis, which is convenient for the remote service of the manufacturer and the user management personnel.

Note: the above intelligent configuration is optional, and we offer on demand.
