产品目录

磁性清选机 Magnetic separator

磁性清选机 Magnetic separator

关键词:

咨询电话:

熊经理 18168863192

周经理 13665101927

产品介绍

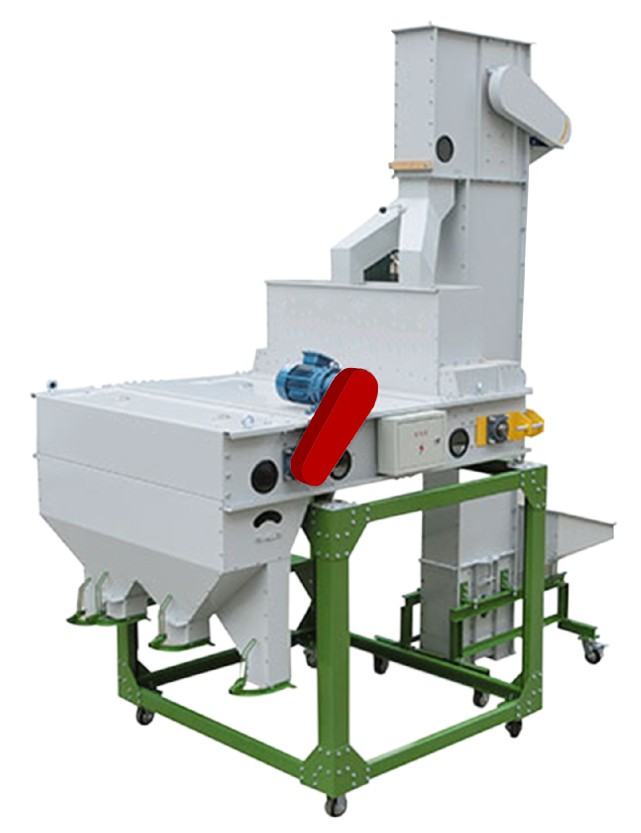

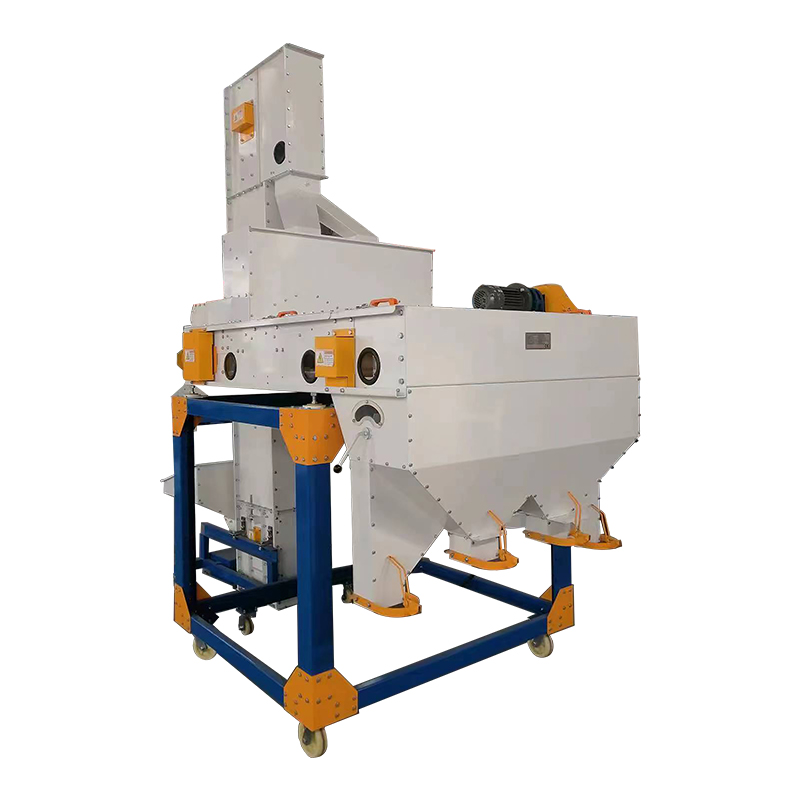

磁性清选机 Magnetic separator

磁性清选机是将土块与磁性金属从粮食中分离出来。当豆类、谷物置于封闭的强磁场中时,它们在皮带输送机上运行会形成一个稳定的抛物线运动,由于磁场的吸引力不同,谷物、豆类和土块会分离。


优势:

1.sus304不锈钢板材料,磁封严,漏磁少。

2.磁辊磁场强度大于17000高斯,磁吸效果好。

3.宽磁面1300mm,保证加工能力,提高磁吸效果。

4.本机采用自动散粮机构设计,物料均匀铺满皮带。

5.它配备了最先进的传感器。根据不同的物料类型,调整到最佳的操作速度是非常方便的。


产品型号

Model

磁辊宽度(mm)

Width of magnetic roller

磁感应强度(Gs)

Magnetic induction intensity

线速度(m/min)

Linear velocity

去土或金属率(%)

Rate of soil and metal removal

功率(kw)

Power

自重量(kg)

Weight

外形尺寸(mm)

Overall Size

产量(t/h)

Capacity

备注

Voltage

5XCX-5

13001700030-10099.9
0.75
7001600x1600x20705

380V,50 Hz,三相(必须为三相,电压可设计为其他)

380V, 50HZ, three phases (must be three phases, voltage can be design to others)

Magnetic cleaning machine is to separate the soil and magnetic metal from the grain. When beans and grains are placed in a closed strong magnetic field, they will form a stable parabola movement when they run on the belt conveyor. Due to the different attraction of the magnetic field, grains, beans and soil blocks will be separated.


Feature:

1. sus304 stainless steel sheet metal machine with strict magnetic closure and less magnetic flux leakage.

2. The magnetic field strength of magnetic roller is more than 17,000 gauss with good magnetic effect.

3.Wide magnetic surface of 1300mm, which ensures the processing capacity and improves the magnetic effect.

4.This machine adopts original design of bulk grain equipment with uniform bulk grain and no maintenance, which greatly reduces the losses caused by the vibration feeder damage.

5.It is equipped with the most advanced transducer. According to different types of materials, it’s very convenient to adjust to optimum operation speed.
