产品目录

除芒机 Deburring machine

除芒机 Deburring machine

关键词:

咨询电话:

熊经理 18168863192

周经理 13665101927

产品介绍

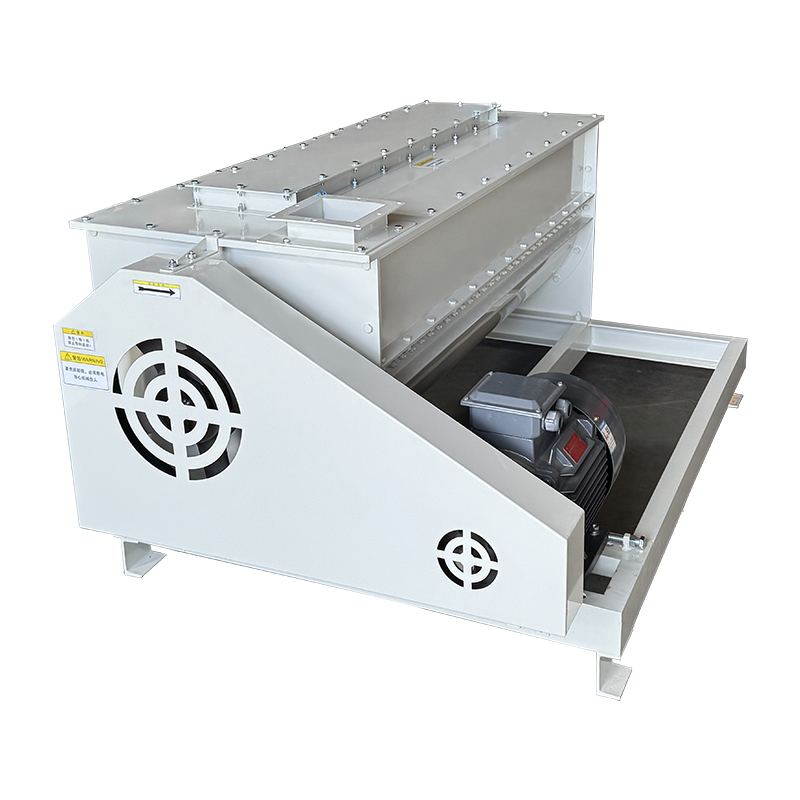

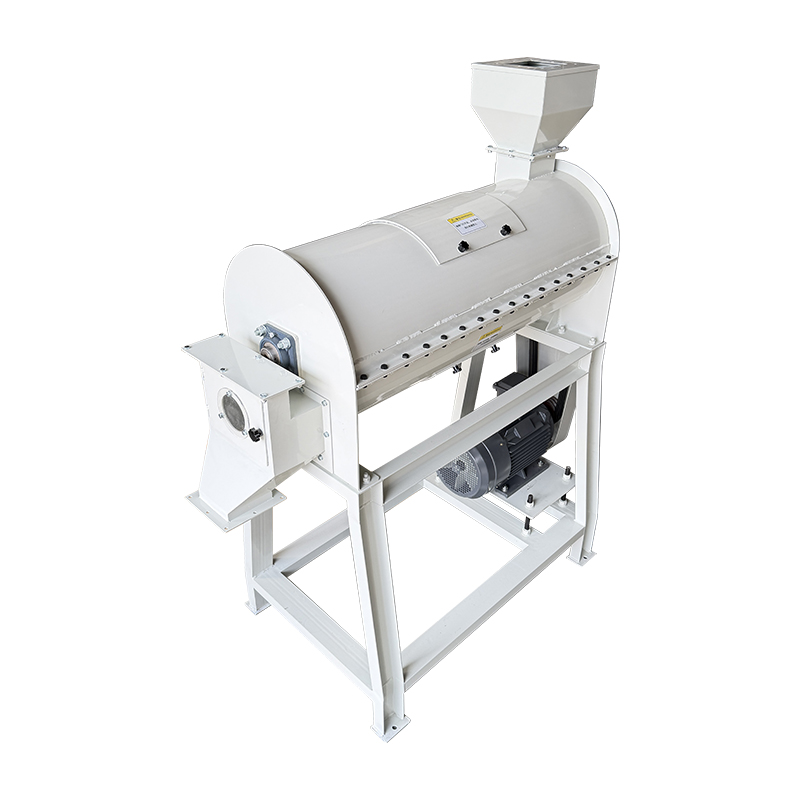

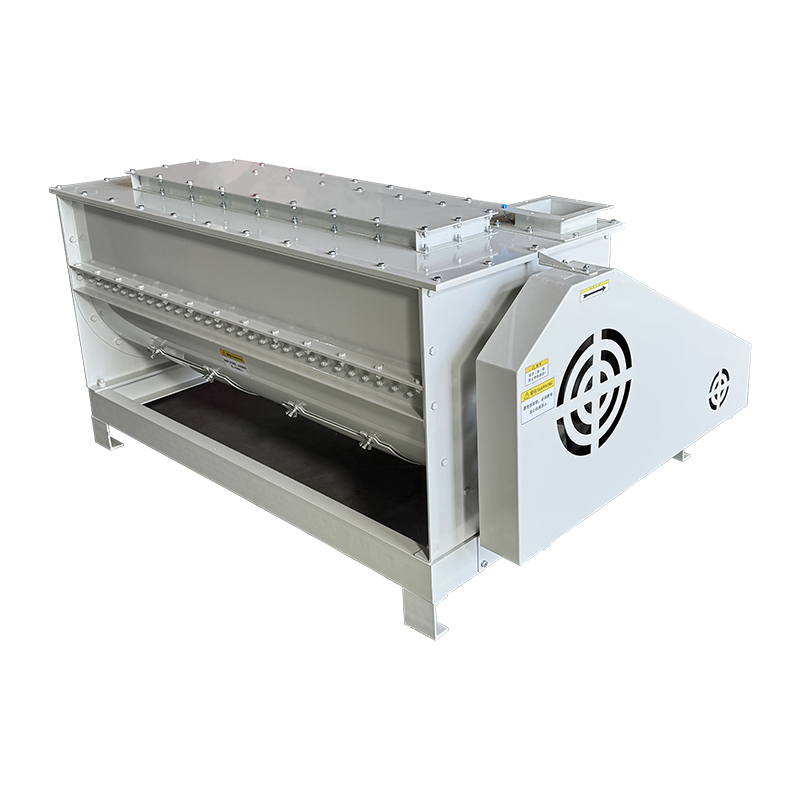

小麦除馀(芒)机 WheatDeburring machine

用    途:小麦、水稻在精选加工前的处理设备,防止筛孔堵塞,提高精选机的除杂效果。

工作原理:通过主轴低速运转的螺旋打杆及筒壁上静止打杆不间断的搅动、摩擦作用,将麦穗或麦壳中的小麦脱壳;将稻穗脱粒或去除稻芒。打杆的角度在0°-30°之间可调,筒内充满程度与摩擦力可调节,根据不同农作物特性,调整打杆角度及筒内摩擦力,可适合不同农作物使用要求,并获得最佳脱壳与除芒效果。

进料口及出料口匀配有除尘管道快速接口,防止灰尘外溢。

螺旋打杆及筒壁匀用耐磨锰钢材质,使用寿命≥10年。



型号

Model

外形尺寸(mm)

Overall Size

 除芒率(%)

Awn removal rate

破碎率(%)

Crushing rate

产量(t/h)

Capacity

功率(kW)

Power

5XCM-5.01200*800*1250≥98≤0.0155.5
5XCM-10.01550*1000*1570≥98≤0.011011
5XCM-15.01750*1500*1800≥98≤0.011515


Application: the processing equipment of wheat and grain before cleaning and processing to prevent screen hole from blocking and improve the effect of cleaning machine.


Working principle: through the continuous agitation and friction of the low-speed spiral beater of the main shaft and the static beater on the cylinder wall, the wheat in the wheat ear or wheat husk will be shelled; the rice ear will be threshed or the awn will be removed. The angle of the driving rod can be adjusted between 0 ° - 30 °, and the filling degree and friction force in the cylinder can be adjusted. According to the characteristics of different crops, the angle of the driving rod and the friction force in the cylinder can be adjusted, which can meet the requirements of different crops, and obtain the best shelling and awning removal effect.


Inlet and outlet shall be equipped with fast interface of dust removal pipeline to prevent dust overflow.


Wear resistant manganese steel shall be uniformly used for screw driving rod and cylinder wall, with service life ≥ 10 years.
