双风选+振动筛清选机 Double Air Screen Cleaner

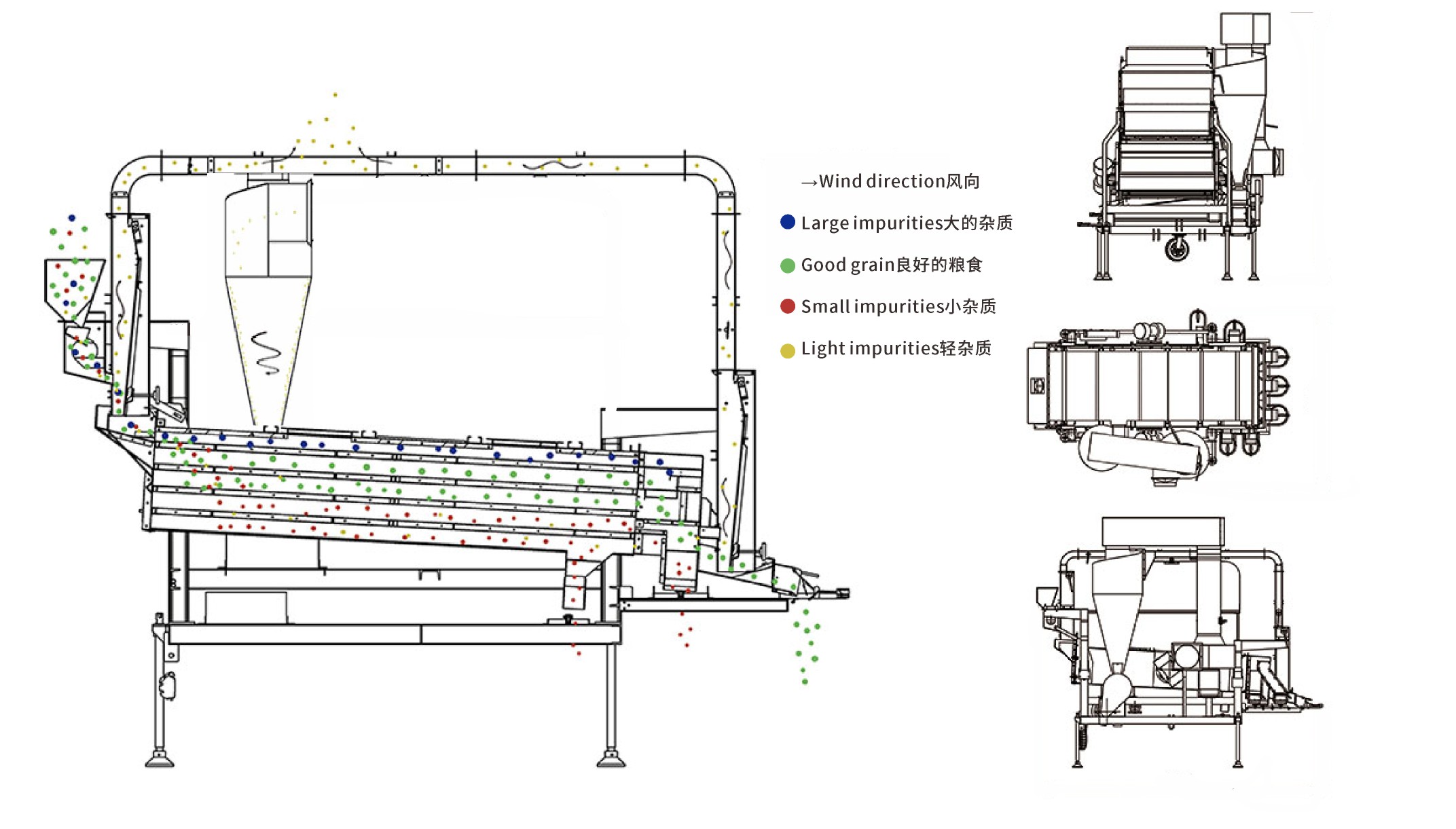

物料通过提升机或螺旋输送机进入前端垂直风筛,此风选可根据杂质与物料的不同比例去除轻杂质。然后进入振动筛,根据不同粒径的颗粒,采用不同类型的高精度冲孔筛进行大小杂质的清洗。最后物料进入后端空气筛,二次风选择可进一步去除残留的轻杂质。


特点:

1.除轻杂效果好:前后双吸风道,轻杂、粉尘等杂质经过二次空气清洁器,去除更彻底。

2.两个空气滤网对称布置,单独控制。

3.后端风筛在二次风选择时,会去除一些土块产生的灰尘,从而提高成品的亮度。

4.大筛面设计1.25m×2.4m,多功能,易换筛。

5.斗式提升机、螺旋输送机可根据不同物料选用。

6.本清选机适用于葵花籽、瓜子、荞麦、亚麻籽、芝麻籽等高杂质物料。

Model

型号

Sieve layer number

筛层数量

Sieve   Surface Area (mm)

筛面面积

Vibration frequency(Times / minute)

振动频率

Power   (kw)

功率

Capacity   (t/h)

产量

Weight (kg)

自重量

Overall   Size

L×W×H (mm)

Remark

备注

5XFS-7.5FC

Four

2400x1250

930

9.5

≥7.5

≥1800

3920×2430×3430

Sunflower seeds:   ≥60bags/h

葵花籽:≥60袋/小时

Beans: ≥ 7.5t/h

豆  子:≥7.5t/h

5XFS-7.5FB

Three

2400x1250

930

9.5

≥7.0

≥1700

3920×2430×3430


Materials enter the front-end vertical air screen through elevator or screw conveyor, this wind selection can remove light impurities according to the different proportion of impurities and materials. Then the materials enter vibration sieve, which can clean big and small impurities by different types of highly precise punching sieve in accordance with different sizes of grains. Finally materials enter the back-end air screen; the secondary wind selection can remove the remnant light impurities further.


Feature:

1.Good effect of removing light impurities: front and rear double suction ducts, light impurities, dust and other impurities are removed more thoroughly through secondary air cleaner.

2.The two air screens arrange symmetrically and control individually.

3.The back-end air screen will remove some dust produced by some clods in the secondary wind selection, thus enhancing the brightness of finished product.

4.Large sieve surface design of 1.25m×2.4m, multi-function and easy to change sieves.

5.Bucket elevator and screw conveyor can be chosen in accordance with different materials.

6.This cleaner is suitable for materials with high impurities, such as sunflower seed, melon seed, buckwheat, flax seed, sesame seed, etc.
