比重清选机 Gravity separator G.MAC-010

Akyurek Technology G.MAC-010 Gravity Separator - machines for the perfect separation of products with a different weight, grading by specific weight of product with very slight differenced in size and/for weight, which cannot be separated by screening (width) or by indented cylinders (length).

Akyurek Technology G.MAC-010重力分离器-用于完美分离不同重量的产品的机器,按产品的重量进行分级,产品的尺寸和/或重量差别很小,不能通过筛分(宽度)或凹痕圆柱体(长度)来分离。



APPLICATIONS 应用

-Seed processing of grain, cereals,corn, fine seed, legumes, cotton seeds, oil seeds, paddy

粮食、谷类、玉米、良种、豆类、棉籽、油籽、稻谷的种子加工

-Food processing separation of impurities in vegetables, lentils, peas, chick peas, beans, coffee peanuts, hazelnuts, almonds, etc.

食品加工分离蔬菜、扁豆、豌豆、鹰嘴豆、豆类、咖啡花生、榛子、杏仁等杂质。

-Separation of metals, plastic, rubber, wood, minerals.

分离金属,塑料,橡胶,木材,矿物。

-Sorting of tree seeds, pulses, grasses, herbs.

树木种子,豆类,草,草本植物的分类。



WORK PRINCIPLE 工作原理



The separator works on a fluidised bed principle; air is forced through the deck causing the light fraction to float above the heavy fraction. The deck is reciprocated causing the heavy fraction to move uphill, while the light fraction floats downhill. Variations in deck speed, air volume, deck material, deck angle (lengthwise and sidewise), and take-off points allow effective separation to be achieved on almost ant dry product. The Re-Sort Conveyor Belt which is located below the Gravity Separator’s Platform conveys the middling seeds to the feeder elevator so the seeds that are not certain of their quality is re-separated thus allows the operator to control the out put quality in finer results.

分离器的工作原理是流化床;空气被强制通过甲板,使轻组分漂浮在重组分之上。甲板是相互作用的,使重的部分上山,而轻的部分下山。甲板速度、空气量、甲板材料、甲板角度(纵向和横向)和起飞点的变化允许在几乎干燥的产品上实现有效分离。位于重力分离器平台下方的再分选输送带将中粒种子输送至给料器提升机,从而将不确定其质量的种子重新分离,从而使操作人员能够更好地控制出料质量。



Technical Data

技术数据

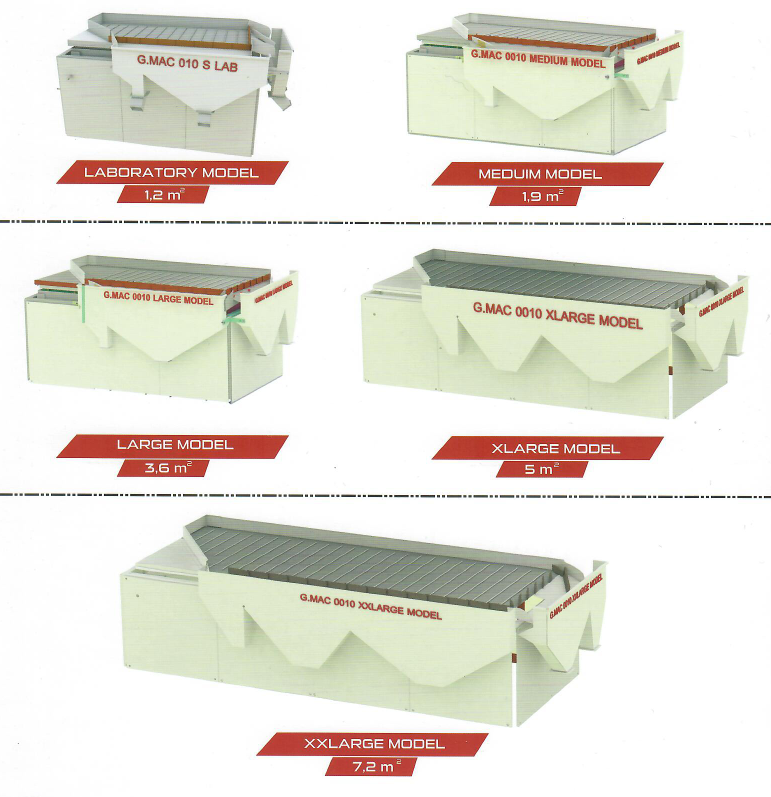

G.MAC-010 LAB

G.MAC-010 MEDIUM

G.MAC-010 LARGE

G.MAC-010 XLAR.

G.MAC-010 XXLAR.

CAPACITY 生产能力






CORN, WHEAT, SOYABEANS

玉米、小麦、大豆

1 t/h

2 to 4 t/h

4 to 6 t/h

6 to 8 t/h

8 to 12.5 t/h

PEAS

豌豆

750 kg

1.5 to 2 t/h

3.5 to 5 t/h

5 to 7.5 t/h

7.5 to 10 t/h

CLOVER, PAPE SEED

三叶草

350 kg

0.8 to 1.25 t/h

1.5 to 2.5 t/h

2.5 to 3 t/h

3.5 to 4.5 t/h

COFFEE GREEN

生咖啡

1.3 kg

3 t/h

6.5 t/h

10 t/h

15 t/h

FAN DRIVE 风扇驱动

1 unit 3 KW

3 unit 4 KW

3 unit 5.5 KW

4 unit 5.5 KW

4 unit 5.5 KW

ECCENTRIC DRIVE MOTOR

偏心驱动电机

1.5 KW

1.5 KW

1.5 KW

2.2 KW

3 KW

TABLE AREA

工作台规格

1.2 m²

1.9 m²

3.6 m²

4.6 m²

7.2 m²

AIR REQUIREMENT

空气需求量

35

150

250

450

600

DIMENSIONS 尺寸






LENGTH

1740 mm

3000 mm

3000 mm

3330 mm

3330 mm

WIDTH

1640 mm

4100 mm

4100 mm

4995 mm

4995 mm

HEIGTH

1400 mm

3900 mm

3900 mm

3390 mm

3390 mm

NET WEIGHT 净重

1500 kg

1500 kg

2000 kg

2500 kg

3500 kg

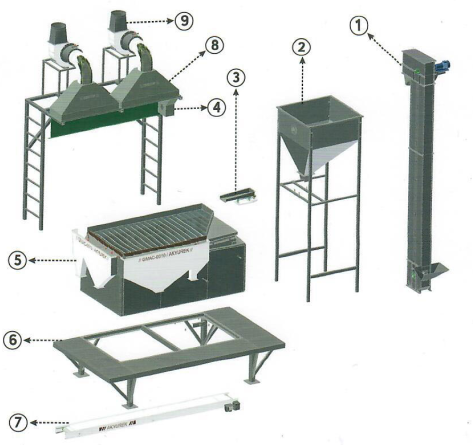

ASSEMBLY VARIATIONS  组件变化

① Elevator 提升机

② Intake pre-storage hopper 进气预储料斗

③ Linear Feeder 线性给料机

④ Cascade级联

⑤ Gravity Separator 重力分离器

⑥ Platform 平台

⑦ Re-sort Conveyor Belt 重新分拣传送带

⑧ Partial Dust Hood 局部防尘罩

8a.Full Dust Hood 全防尘罩

⑨ Centrifugal Aspirator 离心式吸气器

⑩ Cyclone 旋风分离器
